A log server is used to collect management node logs or the platform operation logs. You can add a log server to the cloud and use the collected logs for operation trace or troubleshooting. This makes your O&M more efficient.

On the main menu of ZStack Cloud, choose Settings > System Setting > Log Server. On the Log Server page, click Add Log Server. Then, the Add Log Server page is displayed.

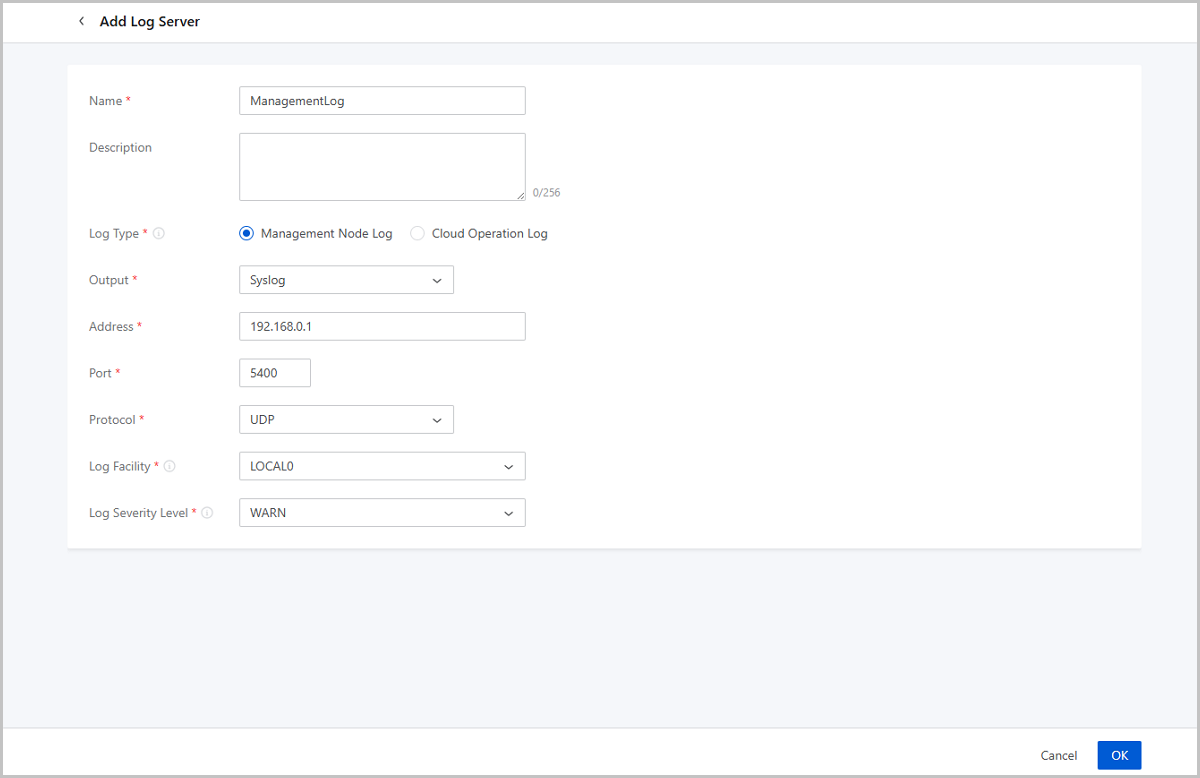

Add a Management Node Log Server

On the displayed page, set the following parameters:

• Name: Enter a name for the log server. The name must be 1 to 128 characters in length and can contain Chinese characters, letters, digits, spaces, hyphens (-), underscores (_), periods (.), parenthesis (), colons (:), and plus signs (+) and cannot begin or end with spaces.
• Description: Optional. Enter a description for the log server.
• Log Type: Select Management Node Log.
• Output: Select the output type. This scenario supports one type: Syslog.
• Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
• Port: Enter a port to provide services.
• Protocol: Select the data transfer protocol.
• Log Facility: Select a value that is consistent with the log identifier you configure in the file, rsylog.conf, of the log server. Then, the Cloud can send logs correctly to this server. Valid values: LOCAL0~LOCAL7.
• Log Severity Level: Select a log severity level. Only logs of this level or higher levels will be received by the log server. Supports the following 7 options (lowest to highest): ALL, TRACE, DEBUG, INFO, WARN, ERROR, FATAL.
  Note:

  • For example, if you select the severity level as WARN, the log server can receive logs of the WARN level and higher levels (ERROR and FATAL).
  • If you select the severity level as ALL, the log server receives logs of all levels.

Add a Cloud Operation Log Server

On the displayed page, set the following parameters:

• Name: Enter a name for the log server. The name must be 1 to 128 characters in length and can contain Chinese characters, letters, digits, spaces, hyphens (-), underscores (_), periods (.), parenthesis (), colons (:), and plus signs (+) and cannot begin or end with spaces.
• Description: Optional. Enter a description for the log server.
• Log Type: Select Cloud Operation Log.
• Output: Select the output type..
  • If you select Syslog, set the following parameters:
    • Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
    • Port: Enter a port to provide services.
    • Protocol: Select the data transfer protocol.
  • If you select Elasticsearch, set the following parameters:
    • Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
    • Port: Enter a port to provide services.
    • Index: Specify an index on the log server for receiving and storing logs from the Cloud.
      Note: The Index must be created on the log server in advance.
    • TLS: Select whether to enable TLS (Transport Layer Security).
    • User Name: Optional. Enter the user name for identity authentication.
    • Password: Optional. Enter the password corresponding to the user name.
  • If you select Forward, set the following parameters:
    • Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
    • Port: Enter a port to provide services.
  • If you select Kafka, set the following parameters:
    • Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
    • Port: Enter a port to provide services.
    • Topics: Specify a Topics on the log server for receiving and storing logs from the Cloud.

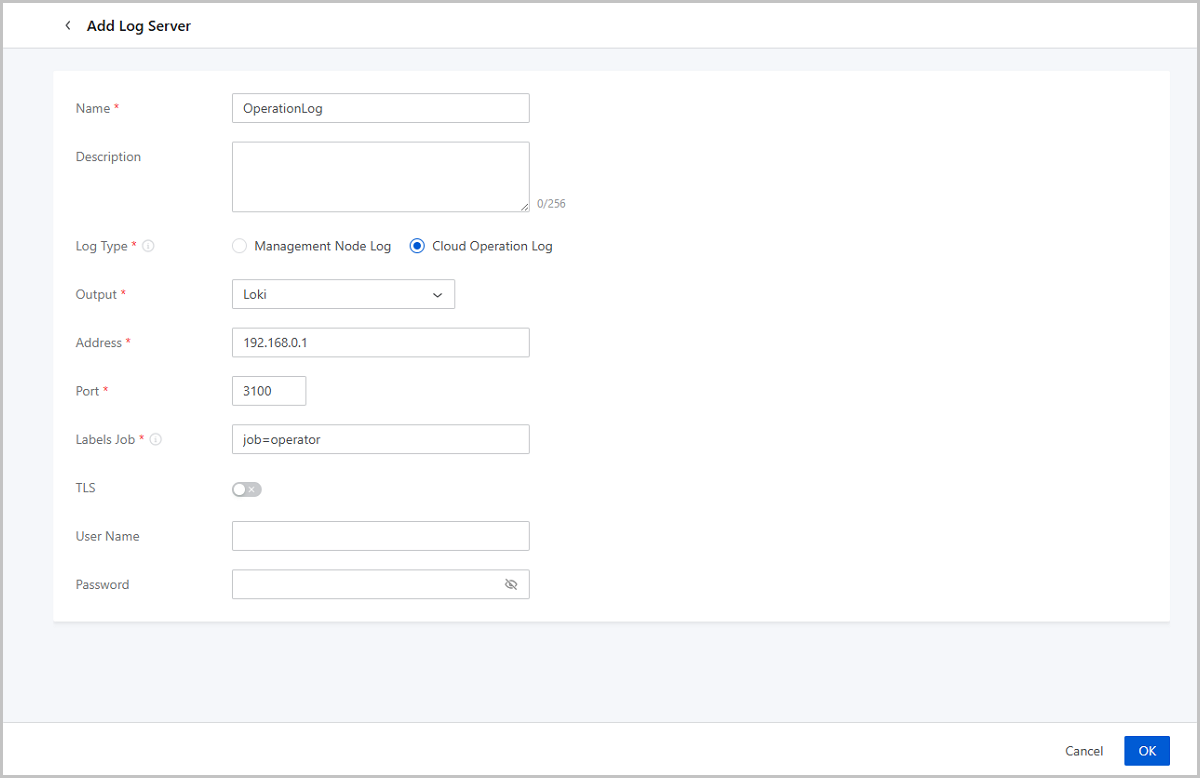

  • If you select Loki, set the following parameters:
    • Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
    • Port: Enter a port to provide services.
    • Labels Job: Add job labels to logs to indicate that these logs are from this Cloud. You can use this label to quickly filter Cloud logs on the log server.
    • TLS: Select whether to enable TLS (Transport Layer Security).
    • User Name: Optional. Enter the user name for identity authentication.
    • Password: Optional. Enter the password corresponding to the user name.

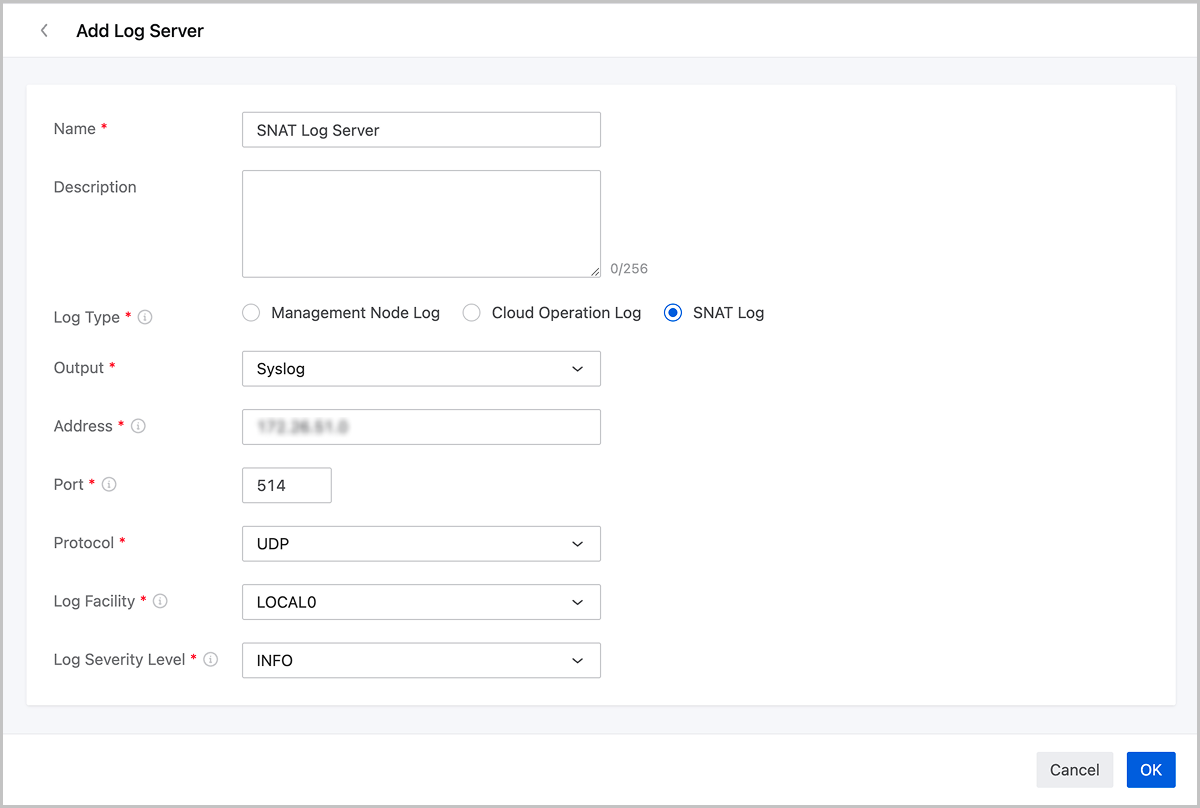

Add a SNAT Log Server

On the displayed page, set the following parameters:

• Name: Enter a name for the log server. The name must be 1 to 128 characters in length and can contain Chinese characters, letters, digits, spaces, hyphens (-), underscores (_), periods (.), parenthesis (), colons (:), and plus signs (+) and cannot begin or end with spaces.
• Description: Optional. Enter a description for the log server.
• Log Type: Select SNAT Log.
• Output: Select the output type. The SNAT log server supports one type: Syslog.
• Address: Enter the server address. You can enter an IP address, domain name, or URL pattern.
• Port: Enter a port to provide services. Default is 514.
• Protocol: Select the data transfer protocol. The SNAT log server supports UDP and TCP.
• Log Facility: Select the log facility category. LOCAL0 through LOCAL7 are supported.
  Note: This setting must match the facility category defined in the log server's rsyslog.conf file. This ensures the cloud platform can properly identify the log server and send log messages to it.
• Log Severity Level: Select the log severity level for messages sent to the log server. The INFO level is supported.
